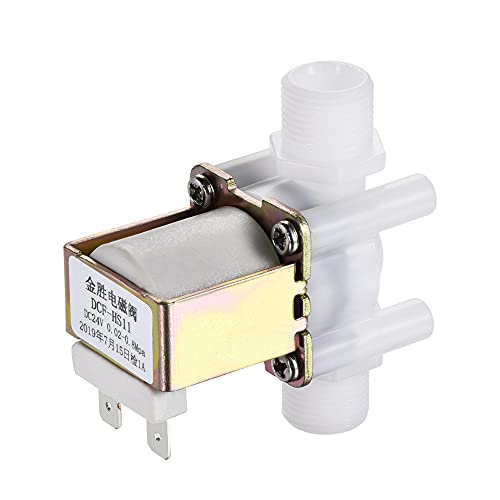

uxcell G3/8 塑料水用电磁阀 高压进水口 适用于灌溉系统、水处理设备
Free shipping on all orders over $50
7-15 days international
10 people viewing this product right now!
30-day free returns
Secure checkout
42158061
Description
Description:1. The water solenoid valve selects the corresponding voltage and temperature according to the actual situation when selecting type.2. When install the solenoid valve, medium flow direction must be consistent with the direction arrow as shown in the valve body, the valve must be installed in horizontal pipe runs. Solenoid valve coil keep in a vertical position, the valve can not be put in places with splashing water.
Features
【Standard】- Model: DCF-HS11; Voltage: ; Connector Angle: 180 Degree; Inlet and Outlet Thread Size : G3/8"; Solenoid Valve Type : ; Working pressure: 0.02~0.8mpa (3~114 psi); Operating temperature: 0~90 Degree Celsius.
【FEATURE】- This is an Inlet Feed Water Solenoid Valve for hot Liquid not more than 100℃, turn on water when system start and cut off water when system stop.
【DESIGN】- Inlet hole has Filter,Flow Direction: Unidirectional(Follow the Arrow on Valve Body) ; Operation Mode: N/O(Normally Open).
【APPLICATION】- Plastic Water Solenoid Valve used in automatic control system: solar automatic water supply, infrared induction ware, water dispenser, water control machine, automatic water dispenser, water heater, card equipment, etc.
【ATTENTION】- It will become hot when it works because there are so many coils inside. It’s normal and safe phenomenon.
