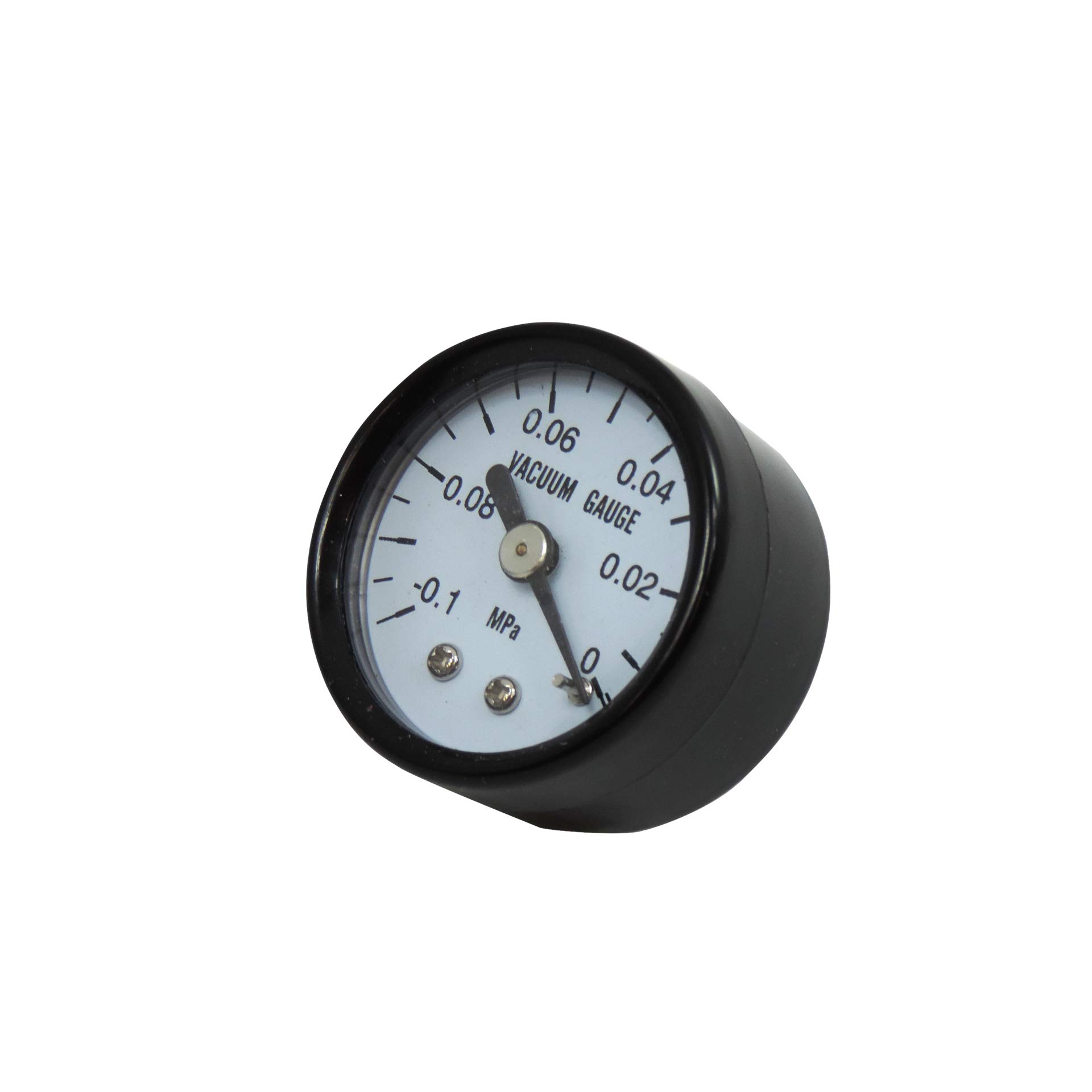

Horizontal Dry Universal Vacuum Air Pressure Gauge, 40MM Diameter, -0.1-0 MPa Range, M10*1 Thread, Ideal for HVAC and Industrial Applications

-0.1 - 0 MPa Horizontal Vacuum Gauge, Iron Black, M10*1Package includes One vacuum gauge OnlySpecifications Model: Vacuum GaugeGauge Outside diameter 44 MMDial Diameter: 40mm Measuring range: Vacuum Gauge -0.1-0 MPACase material: Iron black electrodeposition coating, chromeMirror Material: PCconnection size: M10*1Installation Type: RadialAccuracy Level : 2.5 DegreeMovement Material : BrassJoint Material : BrassUse of environmental conditions : -40 to 70 C, relative humidity less than 85% Temperature : Temperature deviation from 20 ± 5 C, the less than 0.4% / 10 C To be used with Non-Explosive Gas Or Liquid That Do Not Crystallize And Corrode Copper Alloy M10*1 Connection Details ISO Metric profileExternal (bolt thread)Internal (nut thread)Basic mmSize mmThread DesignationSimple Thread DesignationPitch mmClassMajor Dia d=D max. min.Pitch Dia d2=D2 max. min.Minor Dia d3 max. min.ClassMinor Dia D1 min. max.Pitch Dia d2=D2 min. max.Major Dia d=D min. max.Tap Drill10M10x1M10x116g9.9749.7949.3249.2128.8918.5966H8.9179.1539.359.51010.2949
